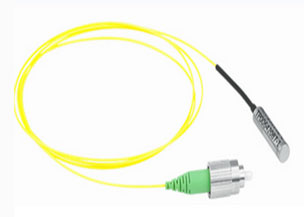

Primanex Faraday rotating mirror uses experienced magneto-optical technology. This component verifies has low insertion loss and the degumivity in the environment, making it an ideal indicator in the fiber optic sensing system, the measurement system.
Features:
- Low insertion loss
- Wide operating band range
- Compact structure
- Light path without glue
- High stability, high reliability
Applications:
- Interference sensing system
Performance parameters
|
Name |
Unit |
Parameter |
Remarks |
||
|
Table fiber |
Special fiber |
||||
|
Fiber type |
NA |
SMF-28e |
Special fiber
in 6.1μm |
Other fiber type optional |
|
|
Insertion loss |
dB |
0.3(typ) 0.5(max) |
0.7(typ) 1.0(max) |
|
|
|
Central wavelength |
nm |
1310 or 1550 |
1053nm Optional |
||
|
Bandwidth |
nm |
±15nm |
|
||
|
Rotation angle |
degree |
45/90 |
|
||
|
Rotation angle at 23 degree wavelength tolerance |
degree |
≤±2 |
|
||
|
PDL |
dB |
≤0.05 |
≤0.10 |
|
|
|
Optical power |
mW |
≤500 |
|
||
|
Tensile load |
N |
≤5 |
|
||
|
Activity temperature |
℃ |
-20～+70 |
|
||
|
Storage temperature |
℃ |
-40～+85 |
|
||
|
Size |
mm |
diameter 5.0×17.0 |
Users can customize |
||
