QP APR 1G Series APD Light Detection Module

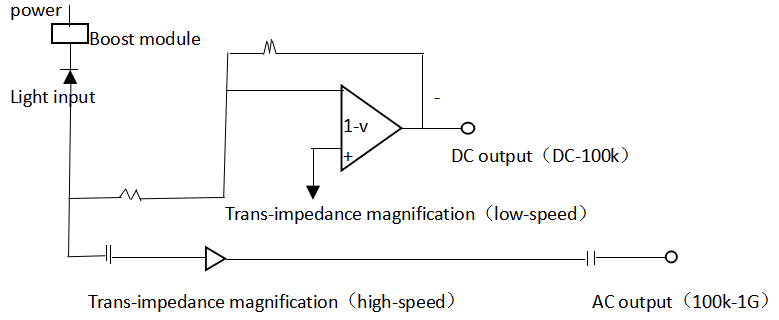

QP-APR-1G series APD optical detection module integrates high-speed response avalanche photodiode (APD), low noise amplifier and high voltage power supply module, fiber or free space coupling, SMA connector output, having high gain, high sensitivity and other characteristics, mainly being used in weak optical signal reception and optical fiber sensing systems and other fields.

Features:

Spectral range ：A:850-1650nm，B:400-1000nm
Response frequency up to 1GHz
Low noise high gain
Optical fiber space coupling input optional

Applications:

Low light signal detection
Optical fiber sensing system
Laser distance measurement

QP APR 1G Series APD Light Detection Module

Performance Parameters

Parameter	QP-APR-1G-A		QP-APR-1G-B

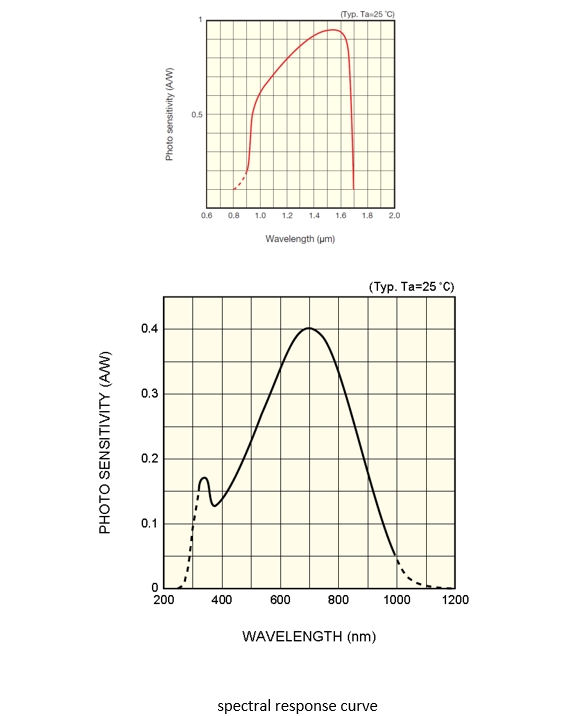

Spectral response range	850~1650nm		400~1000nm
Material type	InGaAs		Si
Light input	Optical fiber	Free space	Optical fiber	Free space
Photosensitive surface diameter *	-	75um	-	75um
Response frequency	DC-1GHz		DC-1GHz
Rise time	0.5ns		0.5ns
Responsiveness	0.9A/W@1550nm,M=1		0.5A/W@700nm,M=1
Gain	1.2×104V/W		6×104V/W
Noise equivalent power	1.5pw/√Hz		0.8pw/√Hz
Saturation optical power	0.8mW		0.4mW
Sensitivity	-33dBm		-36dBm
Operating voltage	DC ±15V
Operating circuit	150mA
Input connector	FC
Output connector	SMA
Output impedance	50Ω
Output coupling method	AC

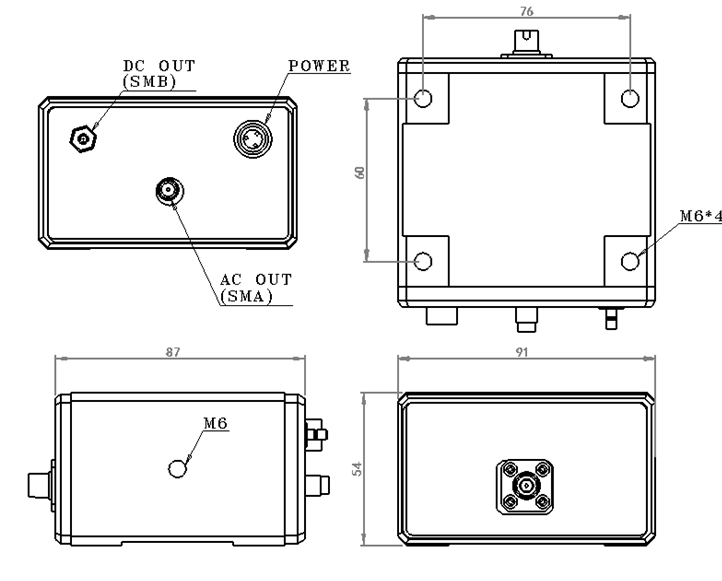

Dimensions	91x88x54

limit Parameters

Parameter	Symbol	Unit	Min	Typ	Max
Input optical power	Pin	mW			10
Operating voltage	Vop	V	±13.5	±15	±16.5
Operating temperature	Top	ºC	-10		60
Storage temperature	Tst	ºC	-40		85
Humidity	RH	%	5		90
