QP-ASE series of broadband light source is based on the principle that semiconductor laser pumped rare earth doped fiber to produce spontaneous emission , combing with local light feedback control technology. The desktop ASE light source has the advantages of high output power、wide line width、 low degree of polarization、high power stability and good stability of average wavelength and so on. It can meet the strict performance requirements of broadband light source in the fields of sensing, testing and imaging.
Features:
- Good power stability
- Low degree of polarization output
- Intelligent microprocessor control
- Good average wavelength stability
Applications:
- Spectral analysis
- Biomedical imaging
- Optical fiber sensing system
- Optical gyroscope testing
Performance Parameters
|
Parameter |
Min |
Typ |
Max |
Unit |
||||||
|
Operating wavelength |
C |
1525 |
- |
1565 |
nm |
|||||
|
L |
1570 |
- |
1610 |
|||||||
|
C+L |
1525 |
|
1610 |
|||||||
|
1060 |
1030 |
|
1090 |
|||||||
|
Output power |
|
10/13/17/23 |
|
dBm |
||||||
|
Power spectral density |
-20 |
|
-2 |
dBm |
||||||
|
Power stability |
15min @ 23℃ |
2.0 |
3.0 |
5.0 |
% |
|||||
|
8h@ 23℃ |
- |
0.01 |
0.02 |
dB |
||||||
|
3dBspectral width |
37 |
40 |
42 |
nm |
||||||
|
Spectral flatness |
|
1.5 |
2 |
dB |
||||||
|
Specification |
Desktop |
Module |
||||||||
|
Dimensions L x W x H |
320×220×90 mm |
90×70×18mm |
||||||||
|
Power requirement |
AC 220V ± 10％ 30W |
DC +5V GND |
||||||||
|
Optical fiber type |
SMF-28 or PMF |
|||||||||
|
Connector type |
FC/PC、FC/APC or user specified |
|||||||||
How To Order
|
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
|
Operating temperature |
Top |
℃ |
-20 |
|
60 |
|
Storage temperature |
Tst |
℃ |
-40 |
|
85 |
|
Humidity |
RH |
% |
5 |
|
90 |

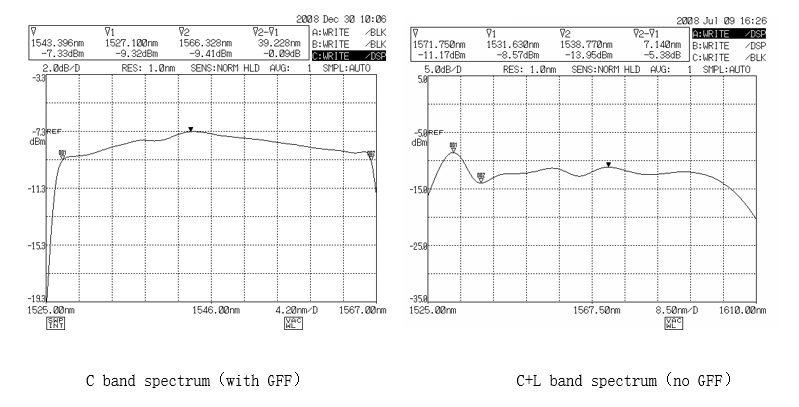

Typical spectrum
How To Order
|
QP |
ASE |
XX |
X |
XX |
X |
XX |
|
|
ASE |
wavelength： C---C band L----L band CL--C+L band O---other bands |
Package form： D---desktop M---module |
Output optical power ： 10---10dBm 13---13dBm 17---17dBm 20---20dBm 23---23dBm |
Others： empty ----with GFF 1----no GFF |
Optical fiber connector： FP ---FC/PC FA ---FC/APC SP---user specified |
