QP-DFB series 852nm DFB laser light source uses foreign high-performance DFB laser chip, unique design of the ATC and APC circuit and isolation control, so it can ensure a very high power and wavelength stability. This product is mainly used in the field of clock frequency measurement, and it can be used with electro-optical modulator, loading time frequency signals. Signal is The signal is transmitted through the fiber. It also can be used in 850nm band optical device measurement, such as high-speed Si-PIN / APD photodetector , the tests of CMOS, CCD and other devices responsiveness or response time.

Features:

Built-in optical isolator
Module package and desktop package are optional

Applications:

850nmoptical fiber system
Optical frequency comb
Spectral analysis
Time and frequency measurement
Visible light detector test system

qp-dfb-series-852nm-dfb-laser-light-source

Performance Parameters

Parameter	Symbol	Min	Typ	Max	Unit
Operating length	l	851	852	853	nm
Output optical power	Po	10	-	50	mW
3dBspectral width	Dl*	-	-	2	MHz
SMSR	SMSR	30	45	-	dB
Relative noise intensity	RIN	-	-150	-140	dB/Hz
Power stability*	PSS	-	-	±0.005	dB/5min
	PLS	-	-	±0.01	dB/8h
Output isolator	ISO	30	-	-	dB
Specification		Desktop		Module
Dimensions L x W x H		320×220×90 mm		80×100×24 mm
Power supply		AC 220V ± 10% 30W		DC +5V
Output optical fiber		5.5/125/250µm PMF
Operating mode		CW
Optical connector **		FC/PC、FC/APC

Limit Parameters

Parameter	Symbol	Unit	Min	Typ	Max
Operating temperature	Top	℃	-5		55
Storage temperature	Tst	℃	-40		85
Humidity	RH	%	5		90

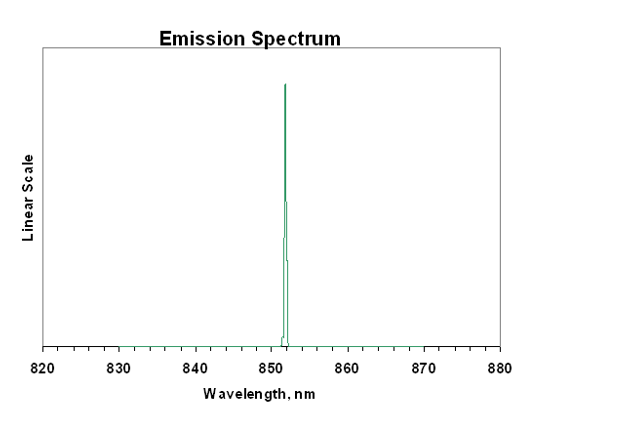

Typical Spectrum

qp-dfb-series-852nm-dfb-laser-light-source-1

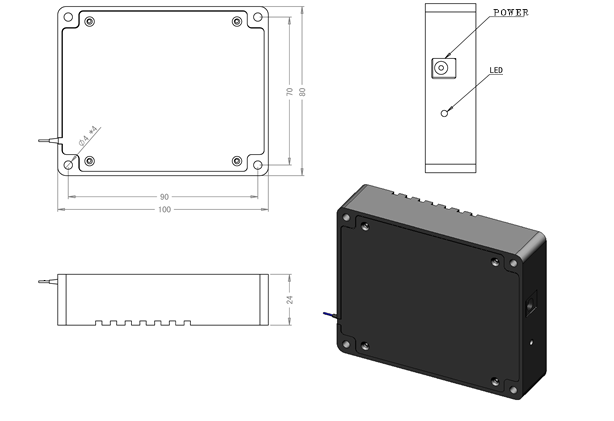

Internal structure

qp-dfb-series-852nm-dfb-laser-light-source-2

How To Order

DFB

852

DFB

Wavelength ：

852nm

Package ：

M---module

D---desktop

Power：

10----10mW

50----50mW

Pigtail fiber：

P ---PMF

Optical fiber connector：

FP ---FC/PC

FA ---FC/APC

SP---user specified

Line width：

Empty --2MHz

01--1MHz
