QP-DML series 1310nm high-bandwidth direct-tuning light source integrates 1310nm direct-tuning DFB laser, drive circuit and temperature control circuit. The light source has 10GHz high modulation bandwidth, excellent mode stability、 low relative noise intensity、 good output power stability. The RF signal modulation features with high-bandwidth、 high-sensitivity makes KG-ELD-13 products the best choice for analog RF signal direct-tuning light sources.
Features:
- Modulation bandwidth is greater than 10GHz
- Based on InGaAs / InP multiple quantum well laser diodes, and the electro-optical
- Conversion sensitivity is high
- Built -in cooler and temperature control circuit
- Built -in monitor PD to ensure output optical power
- Compact structure ,module package
- DC 5V power supply
Applications:
- Analog RF signal transmission link
- Pulse light modulation
- Seed light source
- CATV analog signal transmitter
Performance Parameters
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
|
|
Central wavelength |
l |
1310 |
nm |
|||
|
Output optical power |
Po |
- |
8 |
- |
mW |
|
|
3dB line-width |
Δ υ |
- |
1 |
- |
MHz |
|
|
SMSR |
SMSR |
30 |
45 |
- |
dB |
|
|
Relative noise intensity |
RIN |
- |
-145 |
- |
dB/Hz |
|
|
Polarization extinction ratio* |
PER |
17 |
19 |
- |
dB |
|
|
Modulation bandwidth |
F |
10 |
- |
- |
GHz |
|
|
Electrical return loss |
S11 |
- |
- |
-10 |
dB |
|
|
Match impedance |
ZIN |
- |
50 |
- |
Ω |
|
|
Output isolation |
ISO |
30 |
35 |
- |
dB |
|
|
Specification |
|
Module |
||||
|
Dimensions |
L x W x H |
60×95×21 mm |
||||
|
Power requirements |
|
DC +5V |
||||
|
Output optical fiber |
|
SMF/PMF |
||||
|
Operating mode |
|
External signal directly modulate |
||||
|
Optical connector |
|
FC/PC、FC/APC or user specified |
||||
Limit Parameters
|
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
|
Input RF power |
Pin |
dBm |
|
|
20 |
|
Operating voltage |
Vop |
V |
|
DC 5V |
|
|
Operating temperature |
Top |
ºC |
-10 |
|
60 |
|
Storage temperature |
Tst |
ºC |
-40 |
|
85 |
|
Humidity |
RH |
% |
5 |
|
90 |

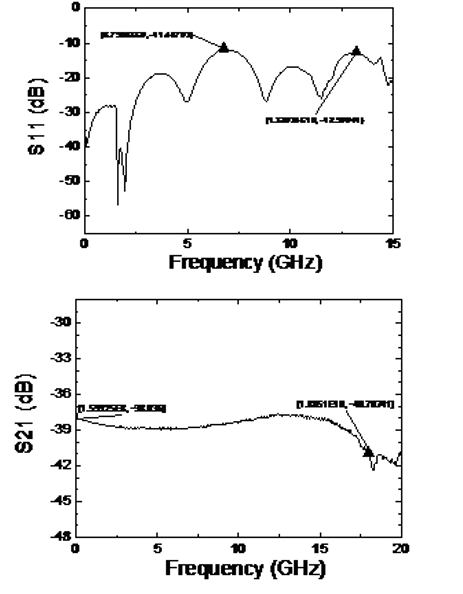

Characteristic Curve

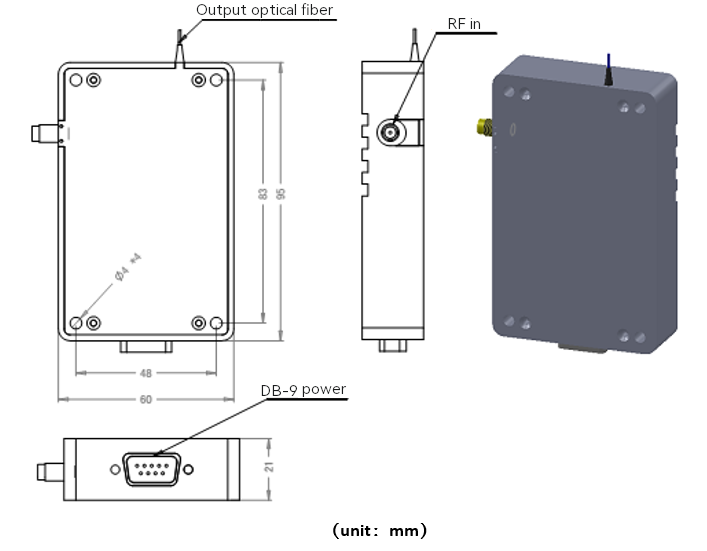

Dimensions
How To Order
|
QP |
DML |
13 |
XX |
X |
XX |
XX |
X |
|
|
Direct -tuning laser |
Operating wavelength： 13-1310nm |
Modulation bandwidth： 10G---10GHz |
package ： M---module D---desktop |
Output power： 10---10mW 18---18mW |
Pigtail fiber ： PM ---PMF SM ---SMF |
Optical fiber connector： FP ---FC/PC FA ---FC/APC SP---user specified |
