The QP-DML-XX series of analog broadband direct-tuning transmitters use a highly linear microwave direct-coupled DFB laser (DML), a fully transparent operating mode without RF drive amplifiers and integrated automatic power control (APC) and automatic temperature control (ATC) circuit to ensures that the laser can transmit up to 18 GHz of microwave RF signals with long distances. High bandwidth and flat response, providing excellent linear optical fiber communication for a variety of analog broadband microwave applications. Due to the avoidance of expensive coaxial cable or waveguide, the transmission distance limit is canceled. They significantly improve the signal quality and reliability of microwave communication, being widely used in remote wireless, timing and reference signal distribution, telemetry, delay lines, and other communication fields.
Features:
- Excellent RF response flatness
- Wide dynamic range
- Entire transparent work applicable signal coding communication standard network protocols
- Wavelength options: 1550nm DWDM wavelength
- Integrate automatic power control and automatic temperature circuit
- No built-in drive RF amplifier, providing more flexibility
Applications:
- Remote antenna
- Long-distance analog optical fiber communication
- Military three wave communication
- Tracking telemetry and control
- Delay lines
- Phased array
Performance Parameters
|
Parameter |
Unit |
Min |
Typ |
Max |
Remarks |
||||
|
Optical characteristics |
|||||||||
|
Laser type |
|
DFB |
|
||||||
|
Operating wavelength |
nm |
1530 |
1550 |
1570 |
DWDM is optional |
||||
|
Equivalent noise intensity |
dB/Hz |
|
|
-145 |
|
||||
|
SMSR |
dB |
35 |
45 |
|
|
||||
|
Light isolation |
dB |
30 |
|
|
|
||||
|
Output light power |
mW |
10 |
|
|
|
||||
|
Light return loss |
dB |
50 |
|
|
|
||||
|
Optical fiber type |
|
SMF-28E |
|
||||||
|
Optical fiber connector |
|
FC/APC |
|
||||||
|
RF characteristics |
|||||||||
|
Operating frequency@-3dB |
GHz |
0.1 |
|
6 |
|
||||
|
0.1 |
|
10 |
|
||||||
|
0.1 |
|
18 |
|
||||||
|
Input RF range |
dBm |
-60 |
|
20 |
|
||||
|
Input 1dB compression point |
dBm |
|
15 |
|
|
||||
|
In-band flatness |
dB |
-1.5 |
|
+1.5 |
|
||||
|
Standing wave ratio |
|
|
|
1.5 |
|
||||
|
RF reflection loss |
dB |
-10 |
|
|
|
||||
|
Input impedance |
Ω |
|
50 |
|
|
||||
|
Output impedance |
Ω |
|
50 |
|
|
||||
|
RF connector |
|
SMA-F |
|
||||||
|
Power supply |
|||||||||
|
Power supply |
DC |
V |
|
5 |
|
|
|||
|
V |
|
-5 |
|
|
|||||
|
Consumption |
W |
|
|
10 |
|
||||
|
Power supply interface |
|
Wear capacitance |
|
||||||
Limit Parameters
|
Parameter |
Unit |
Min |
Typical |
Max |
Remarks |
|
Input RF power |
dBm |
|
|
20 |
|
|
Operating voltage |
V |
|
|
13 |
|
|
Operating temperature |
℃ |
-40 |
|
+70 |
|
|
Storage temperature |
℃ |
-40 |
|
+85 |
|
|
Operating relative humidity |
% |
5 |
|
95 |
|

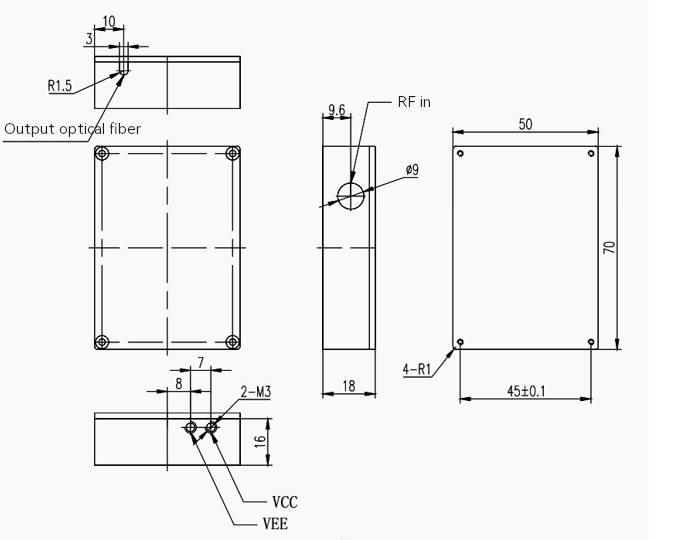

Dimensions
How To Order
|
QP -DML |
XX |
XX |
X |
X |
X |
X |
|
Direct-tuning modulation transmitter module |
Operating wavelength ： 15-1550nm XX—DWDM channel |
Modulation bandwidth ： 06G-06GHz 10G-10GHz 18G-18GHz |
Package type： M—standard module |
Output power： 06---6dBm 10---10dBm |
Optical fiber connector ： FP ---FC/PC FA ---FC/APC SP---user specified |
Operating temperature： empty-- -20~60℃ G--- -40~70℃ J--- -55~70℃ |
