The QP- EDFA -B erbium-doped fiber power amplifier (EDFA) uses high-performance pump laser, high gain erbium-doped fiber, and unique control and protection circuit to achieve low noise and high stability output. The front panel provides power switch, LCD power display, and output power mediation knob, while providing RS232 interface, usually being used as a power fiber amplifier in optical fiber sensing and fiber optical fiber communication systems.
Features:
- Saturation output optical power 23dBm
- Low noise figure
- Input / output optical power display
- Output power adjustable
- Automatic shut off pump protection
- Remote control
- Desktop and module are optional
Applications:
- Optical fiber sensing system
- Optical fiber communication
Performance Parameters
|
Parameter |
Unit |
Min |
Typ |
Max |
||
|
Operating wavelength range |
nm |
1525 |
|
1565 |
||
|
Output signal power range |
dBm |
-10 |
|
|
||
|
Small signal gain |
dB |
|
30 |
35 |
||
|
Saturation optical output range * |
dBm |
|
17/20/23 |
|
||
|
Noise figure ** |
dB |
|
5.0 |
5.5 |
||
|
Input isolation |
dB |
30 |
|
|
||
|
Output isolation |
dB |
30 |
|
|
||
|
Polarization independent gain |
dB |
|
0.3 |
0.5 |
||
|
Polarization mode dispersion |
ps |
|
|
0.3 |
||
|
Input pump leak |
dBm |
|
|
-30 |
||
|
Output pump leak |
dBm |
|
|
-40 |
||
|
Operating voltage |
module |
V |
4.75 |
5 |
5.25 |
|
|
desktop |
V( AC ) |
80 |
|
240 |
||
|
Optical fiber |
|
SMF-28 |
||||
|
Output interface |
|
FC/APC |
||||
|
Dimensions |
module |
mm |
90×70×18 |
|||
|
desktop |
mm |
320×220×90 |
||||
Limit Parameters
|
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
|
Operating temperature |
Top |
ºC |
-5 |
|
55 |
|
Storage temperature |
Tst |
ºC |
-40 |
|
80 |
|
Humidity |
RH |
% |
5 |
|
90 |

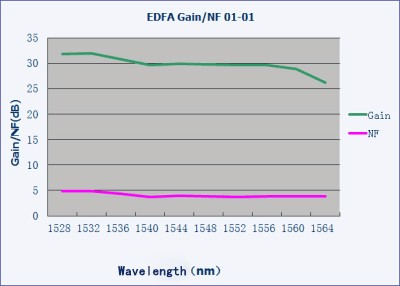

Characteristic curve

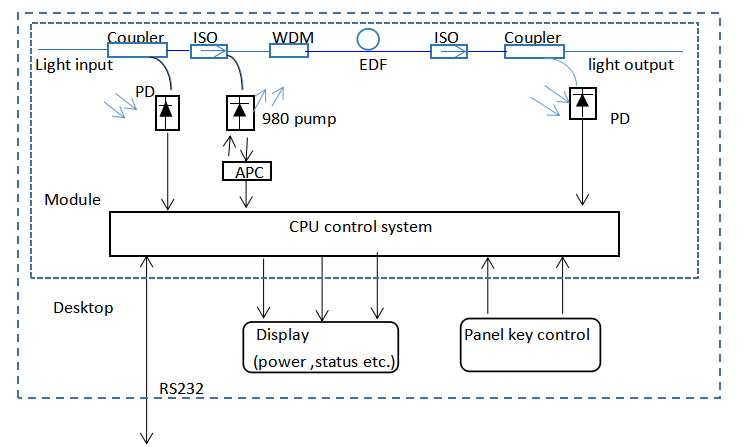

Internal Structures
How To Order
|
QP |
EDFA |
X |
XX |
X |
XX |
XX |
|
|
Erbium doped fiber amplifier |
B--power amplifier mode |
Output power 17.....17dBm 20….20dBm 23….23dBm |
Package form D---desktop M---module |
Optical fiber connector FA ---FC/APC |
Empty --not gain flat GF - gain flat |
*please contact our seller if you have special requirements
