QP PD Series Analog Bandwidth Light Receiver

QP-PD-XX series of analog broadband optical receiver module uses high linear PIN detector, all transparent working mode, without RF drive amplifier. They transport up to 20GHz microwave RF signal with high long-distance bandwidth and flat gain, providing excellent linear optical fiber communication for various analog broadband microwave applications. Due to the avoidance of expensive coaxial cable or waveguide, the transmission distance limit is canceled, significantly improving the signal quality and microwave communication reliability. And can be widely used in remote wireless, timing and reference signal distribution, telemetry, and delay lines—communication field.

Features:

Remote antenna
Long distance analog fiber communication
Tracking, telemetry and control
Delay lines
Phase array

QP PD Series Analog Bandwidth Light Receiver

Performance Parameters

Parameter		Unit	Min	Typ	Max			Remarks
Optical characteristics
Detector type			PIN
Response wavelength		nm	1100			1700
Responsiveness		A/W	0.8	0.9
Optical return loss		dB	50
Optical fiber type			SMF-28E
Optical fiber connector			FC/APC
RF properties

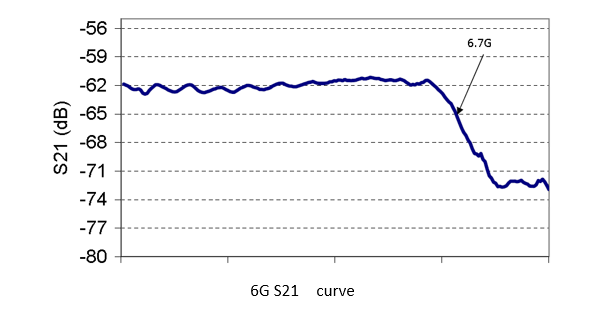

Operating wavelength -3dB		GHz		6
				10
				18
Band-in flatness		dB	-1.5		+1.5
Standing wave ratio					1.5
Input impedance		Ω		50
RF connector			SMA-F
Power supply
Power supply	DC	V		5
Consumption		W			1		Single-power working

limit Parameters

Parameter	Unit	Min	Typ	Max	Remarks
Input optical power	dBm			10
Operating voltage	V			10
Operating temperature	℃	-40		+70
Storage temperature	℃	-40		+85
Operating relative humidity	%	5		95
