Lithium niobate electro-optical phase modulator based on titanium diffusion process has the characteristics of low insertion loss, high modulation bandwidth, low half wave voltage, high damage optical power, etc. It is mainly used in the fields of optical chirp control in high-speed optical communication systems, phase shift in coherent communication systems, generation of sidebands in ROF systems, and reduction of stimulated Brillouin scattering (SBS) in analog optical fiber communication systems.
Features:
- Bandwidth ~20GHz
- Low half-wave voltage
- High damage optical power
- Low insertion loss
Applications:
- Optical fiber sensing
- Optical fiber communication
- Laser coherent synthesis
- Phase delay (direction shifter)
- Quantum communication
- ROF system
Performance Parameters
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
|
|
Optical parameters |
||||||
|
Optical parameters |
l |
1520 |
|
1570 |
nm |
|
|
Optical parameters |
IL |
3 |
3.5 |
4 |
dB |
|
|
Optical return loss |
ORL |
|
|
-45 |
dB |
|
|
Optical fiber |
Input port |
|
Panda PM |
|||
|
output port |
|
Panda PM |
||||
|
Optical fiber interface |
|
FC/PC、FC/APC or Customization |
||||
|
Electrical parameters |
||||||
|
Operating bandwidth （-3dB） |
KG-PM-15-20G |
S21 |
|
18 |
20 |
GHz |
|
Vpi @ 50KHz |
KG-PM-15-20G |
Vπ |
3 |
4 |
4.5 |
V |
|
Electrical return loss |
S11 |
|
-12 |
-10 |
dB |
|
|
Input impedance |
KG-PM-15-20G |
ZRF |
50 |
W |
||
|
Electrical interface |
KG-PM-15-20G |
|
K(f) |
|||
Limit conditions
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
|
Input optical power @1550nm |
Pin,Max |
dBm |
|
|
17 |
|
Input RF power |
|
dBm |
|
|
27 |
|
Operating temperature |
Top |
ºC |
-10 |
|
60 |
|
Storage temperature |
Tst |
ºC |
-40 |
|
85 |
|
Humidity |
RH |
% |
5 |
|
90 |

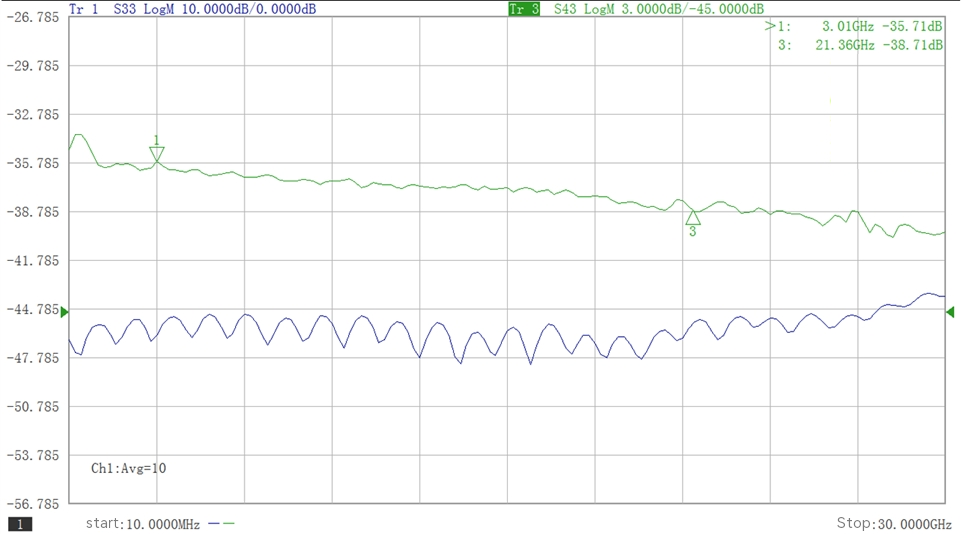

Characteristic curve

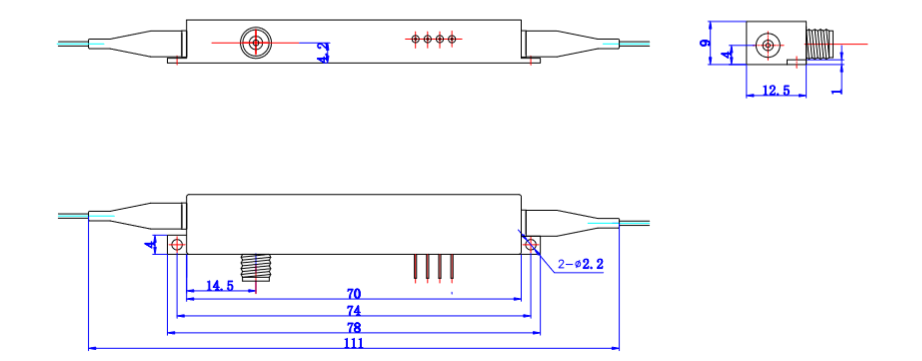

Package size(mm)
How To Order
|
QP |
PM |
W |
B |
F |
C |
|
|
Modulator Type： PM---Phase modulator |
Wavelength： 15---1550nm |
Bandwidth： 20G---20GHz |
Fiber： PP---PM/PMF |
Connector： FA---FC/APC FP---FC/PC SP--- User specified |
