QP PM UV Low Vpi phase modulator

QP-PM-UV series Low-Vpi phase modulator has low half-wave voltage(2.5V), low insertion loss, high bandwidth, high damage characteristics of optical power, chirp in high-speed optical communication system is mainly used for light control, phase shift of coherent communication system, sideband ROF system and reduce the simulation of optical fiber communication system in Brisbane deep stimulated scattering (SBS), etc.

Features:

High endurance light power
Low half-wave voltage~2.5V
Low insertion loss
High modulating bandwidth

Applications:

Optical fiber sensing
Optical fiber communication, laser coherent synthesis
Phase delay (shifter)
Quantum communication
ROF system

Performance Parameters

Parameter		Symbol	Min	Typ	Max	Unit
Optical parameters
Operating wavelength		l	1525		1565	nm
Insertion loss		IL		3	3.5	dB
Optical return loss		ORL			-45	dB
Optical fiber	Input port		Panda PM
Optical fiber	output port		Panda PM
Optical fiber interface			FC/PC、FC/APC Or user to specify
Electrical parameters
Operating bandwidth（-3dB）		S₂₁	10	12		GHz
RF Half-wave voltage（Each electrode）	@50KHz	Vπ	2.4	2.5	2.6	V
RF Half-wave voltage（Each electrode）	@10GHz	Vπ	3.4V		3.7	V
Electrical return loss		S₁₁		-12	-10	dB
RF Input impedance		Z_RF	50			W
Electrical interface			SMA(f)

Limit condition

Parameter	Symbol	Min	Typ	Max	Unit
Input optical power	P_in,Max	dBm			20
Input RF power		dBm			28
Operating temperature	Top	ºC	-10		60
Storage temperature	Tst	ºC	-40		85
Humidity	RH	%	5		90

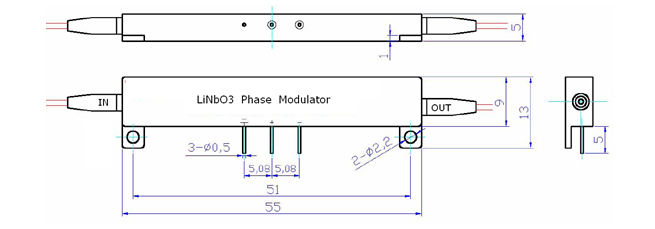

Dimensions(mm)

QP-PT 40GHz high-speed light detection module

How To Order

PM-UV

10G

Modulator type：

PM---Phase modulator
UV---Low-Vpi

Working wavelength：

15---1550nm

Operating bandwidth：

10G---10GHz

Optical fiber：

PS---PM/SMF

PP---PM/PMF

Facet：

FA---FC/APC

FP---FC/PC

SP---用户指定

*please contact our seller if you have special requirements
