QP-PR-1G 2um analog light detection module integrates high-speed enhanced InGaAs detector and low noise amplifier, single-mode fiber or free space coupling, SMA connector output, having high gain. High sensitivity, gain flat and other characteristics are mainly used in infrared doped Tm, Ho fiber laser testing, gas and water molecules detection, and other fields.
Features:
- Spectral range：900-2300nm
- Low noise
- High gain
- Single -mode fiber or free space coupling optional
- Compact structure,Anti - electromagnetic interference
- Can be customized according to customer requirements (built-in PIN tube photosensitive surface optional)
Applications:
- Weak signal detection
- Analog signal detection
- Water molecule detection
- Doped Tm, Ho fiber laser test
- Picosecond mid - infrared laser pulse detection
Performance Parameters
|
parameter |
Symbol |
Unit |
Min |
Typ |
Max |
|
||||||||
|
Response wavelength |
|
nm |
900 |
2000 |
2300 |
|
||||||||
|
Photosensitive surface diameter |
Ø |
µm |
|
60 |
|
|
||||||||
|
Material type |
|
InGaAs |
|
|||||||||||
|
Responsiveness @2000nm |
R |
A/W |
- |
0.9 |
|
|
||||||||
|
3dB Bandwidth |
BW |
GHz |
- |
1 |
|
|
||||||||
|
Rise time |
trise |
ns |
- |
0.35 |
|
|
||||||||
|
Gain |
Gain |
V/W |
- |
1.6×103 |
|
|
||||||||
|
Noise equivalent power |
NEP |
pw/√Hz |
|
29 |
|
|
||||||||
|
Saturation optical power |
Ps |
mW |
|
4.7 |
|
|
||||||||
|
Output impedance |
Ro |
|
|
50 |
|
|
||||||||
|
Operating voltage |
Vop |
V |
|
±15 |
|
|
||||||||
|
Dimensions |
L x W xH |
mm |
76.0 × 72.6 × 44.0 |
|
||||||||||
|
Input fiber |
|
Optical fiber、Freespace |
|
|||||||||||
|
Output fiber |
|
AC port：SMA(f) |
DC port：SMB(f) |
|
||||||||||
|
Fiber connector |
|
FC/PC、FC/APC |
|
|||||||||||
|
|
|
|
|
|
|
|
||||||||
limit Parameters
|
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
|
Input optical power |
Pin |
mW |
|
|
10 |
|
Operating voltage |
Vop |
V |
±13.5 |
±15 |
±16.5 |
|
Operating temperature |
Top |
ºC |
-10 |
|
60 |
|
Storage temperature |
Tst |
ºC |
-40 |
|
85 |
|
Humidity |
RH |
% |
5 |
|
90 |

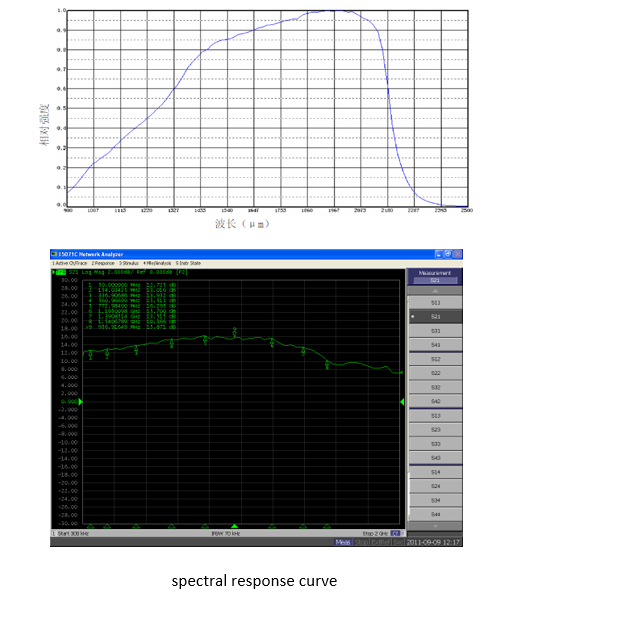

Characteristic Curve

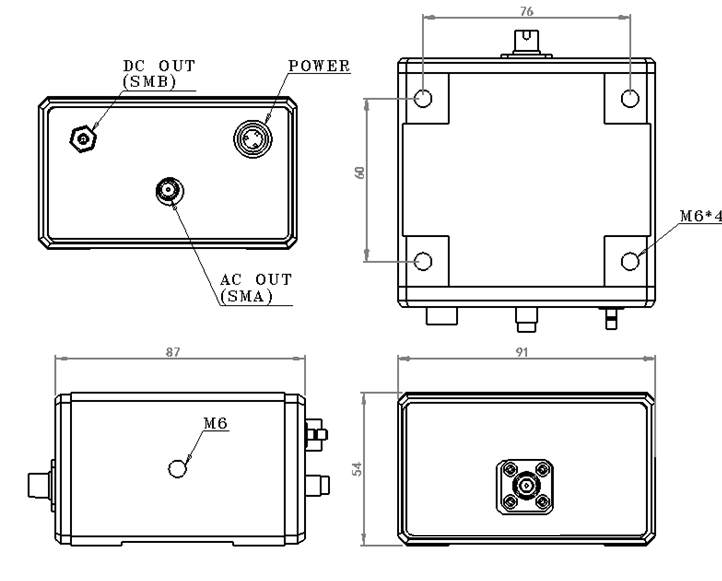

Dimensions(mm)
How To Order
|
QP |
PR |
1G |
L |
XX |
|
|
Photoreceiver |
3dB bandwidth 1GHz |
Operating wavelength： 900~2300nm |
Input type FC----fiber coupling FS ---- Free space |
