The QP-RF-10-RZ amplifier is a desktop amplifier designed specifically for RZ code transmission in high-speed optical fiber communication systems ,and it amplifies tiny high-speed signal levels to a higher level that can drive the modulator, and then driving Lithium niobate (LiNbO3) electro-optical modulator to work, and it has a better gain flatness in the broadband range
Features:
- 12.5Gbps RZ
- Output amplitude adjustable
- High signal to noise ratio
- Can display the output amplitude
- Easy to use
Applications:
- 10GOptical transmission system
- Microwave photonics
- OC-192 SONET/SDH system
Performance Parameters
|
Parameter |
Unit |
Min |
Typ |
Max |
||||||
|
Transmission rate |
Gb/s |
0.0001 |
|
12.5 |
||||||
|
Operating frequency range |
Hz |
75K |
10G |
|
||||||
|
Output amplitude |
V |
3.5 |
|
8 |
||||||
|
Gain |
dB |
21 |
|
|
||||||
|
Output Power P1dB |
dBm |
|
21 |
22 |
||||||
|
Gain change （ripple） |
dB |
|
±1.5 |
|
||||||
|
Rise / fall time |
ps |
|
22/22 |
|
||||||
|
Additional jitter |
ps |
|
1.1 |
|
||||||
|
Input / output impedance |
|
- |
50 |
- |
||||||
|
Input voltage amplitude |
V |
|
0.5 |
1 |
||||||
|
Input voltage standing wave ratio （VSWR） |
75K to 10GHz |
|
|
1.6:1 |
2.25:1 |
|||||
|
Output voltage standing wave ratio （VSWR） |
|
|
2:1 |
3:1 |
||||||
|
Dimensions （L x W x H） |
mm |
270 x 200 x 70 |
||||||||
|
Operating Voltage |
V |
AC 220 |
||||||||
|
Radio interface |
|
SMA(f) |
||||||||
Limit Parameters
|
Parameter |
Unit |
Min |
Typ |
Max |
|
Input voltage amplitude |
V |
|
|
1 |
|
Operating temperature |
℃ |
-10 |
|
60 |
|
Storage temperature |
℃ |
-40 |
|
85 |
|
Humidity |
% |
5 |
|
90 |

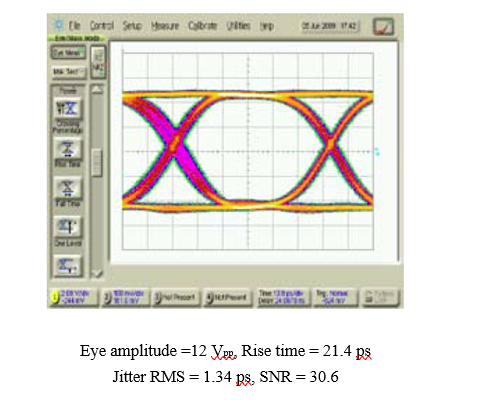

Output Eye Diagram
How To Order
|
QP |
RF |
XX |
XX |
X |
|
|
Microwave amplifier |
Operating rate: 10---10Gbps 20---20Gbps 40---40Gbps |
Output characteristics ： Empty --- standard HO--- High voltage output RZ --- RZ Signal amplification |
Package form D--- Desktop |
