The QP-RF-40 Broadband Microwave Amplifier is a benchtop instrument specifically designed for high-speed lithium niobate electro-optic modulators, and it amplifies tiny high-speed signal levels to a higher level that driving the modulator, and then it drives niobium Lithium (LiNbO3) electro-optical modulator work, and having in the broadband range has a better gain flatness in the broadband range.
Features:
- Adjustable gain
- Output range up to 6.5V
- Highly integrated
- Easy to use
Applications:
- 40G optical modulation system
- Fiber test system
- Optical fiber sensing system
Performance Parameters
|
Parameter |
Unit |
Min |
Typ |
Max |
|
|
Transmission rate |
Gb/s |
0.0001 |
|
44 |
|
|
Operating frequency range |
Hz |
50K |
40G |
|
|
|
Output amplitude |
V |
0 |
6.5 |
|
|
|
Gain range |
dB |
0 |
|
26 |
|
|
Adjustment accuracy |
V |
|
0.1 |
|
|
|
Output Power P1dB |
dBm |
20 |
|
|
|
|
Gain change （ripple） |
dB |
|
±1.5 |
|
|
|
Rise / fall time |
ps |
|
8 |
12 |
|
|
Additional jitter |
ps |
|
0.42 |
|
|
|
Input / output impedance |
|
- |
50 |
- |
|
|
Input voltage amplitude |
V |
|
0.5 |
1 |
|
|
Input voltage standing wave ratio （VSWR） |
75K to 10GHz |
|
|
1.6:1 |
2.25:1 |
|
Output voltage standing wave ratio （VSWR） |
|
|
2:1 |
3:1 |
|
|
Dimensions （L x W x H） |
mm |
270 x 200 x 70 |
|||
|
Operating Voltage |
V |
AC 220 |
|||
|
Radio interface |
|
V(f)-V(f) 100 x 100 x34 mm |
|||
Limit Parameters
|
Parameter |
Unit |
Min |
Typ |
Max |
|
Input voltage amplitude |
V |
|
|
1 |
|
Operating temperature |
℃ |
-10 |
|
60 |
|
Storage temperature |
℃ |
-40 |
|
85 |
|
Humidity |
% |
5 |
|
90 |

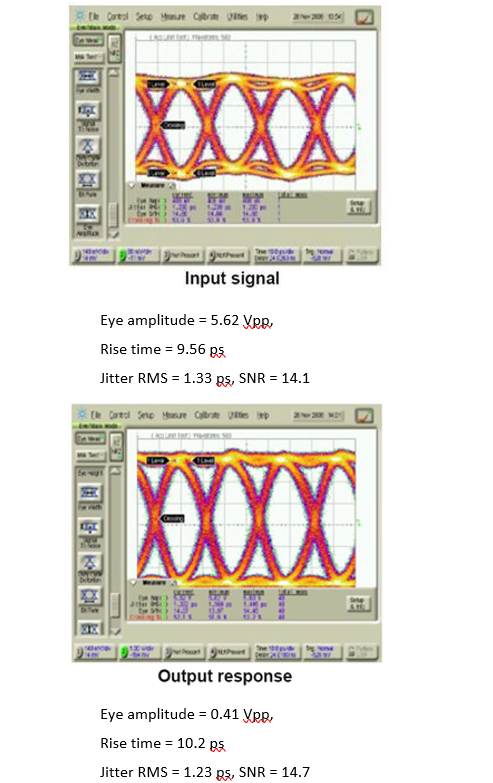

Output Eye Diagram
How To Order
|
QP |
RF |
XX |
XX |
X |
|
|
Microwave amplifier |
Working rate： 10---10Gbps 20---20Gbps 40---40Gbps |
Output characteristics: HO---High voltage output RZ ---RZ Signal amplification |
Package form |
